Found the Bug, Fixed the Stack: ROCm gfx1031 vs Vulkan on RX 6700 XT.

Q: Why not just use Vulkan? It works out of the box.

Vulkan needs no patch, but at 8192 context it does 354 t/s prefill vs ROCm 653 t/s. That is 23.1s vs 12.5s prefill — net 35.6s vs 27.3s full cycle. Below ~1760 tokens Vulkan is net-faster, above that ROCm wins. For long-context work ROCm is clearly better once running.

Q: Is forcing max_blocks_per_sm = 1 safe?

Unknown — that is why it is reported as bug #26702, not a fix. It avoids the crash and benches stably, but only a maintainer can confirm correctness for gfx1031. Do not treat the sed one-liner as upstream fix.

Q: Does this explain the decode being slower on ROCm?

No. llama-bench excludes sampling time, so the TOP_K sampler gap seen in llama-server logs is not confirmed as the cause of the tg512 gap. Decode deficit is under separate investigation — planned as EXP 009.

Can an “unsupported” RDNA2 card (RX 6700 XT gfx1031) beat Vulkan by 23% wall-clock on 8K context — once the GFX-target bug and flash-attention assert are found and fixed?

View upstream issue #26702 ROCm 653.9 vs Vulkan 354.4 t/s prefill · 3 runs each

Looking for the better native version? This page uses override workaround. EXP 009 refines it to native without override + Reddit write-up (580 tok/s sustained, 35B split).

System Requirements

CPU

Intel Core i5-11400F

RAM

16GB DDR4 3200 MT/s XMP

GPU

RX 6700 XT 12GB (gfx1031 Navi22)

Ubuntu Desktop 26.04 LTS

ROCm / HIP

7.1.52801 + clang 21.1.8

llama.cpp

0a50d99 build 10108

Model Under Test

gemma-4-12b-it-IQ4_NL 6.24GiB

Tuning

LACT Manual Compute 182W -90mV

Status

STABLE (workaround)

Native gfx1031 requires HSA_OVERRIDE_GFX_VERSION=10.3.0 + FA assert patch. Upstream fix pending — see GitHub #26702.

Screenshots

Same LACT tuning for both backends — no backend-specific tuning. Full terminal tables in issue #26702.

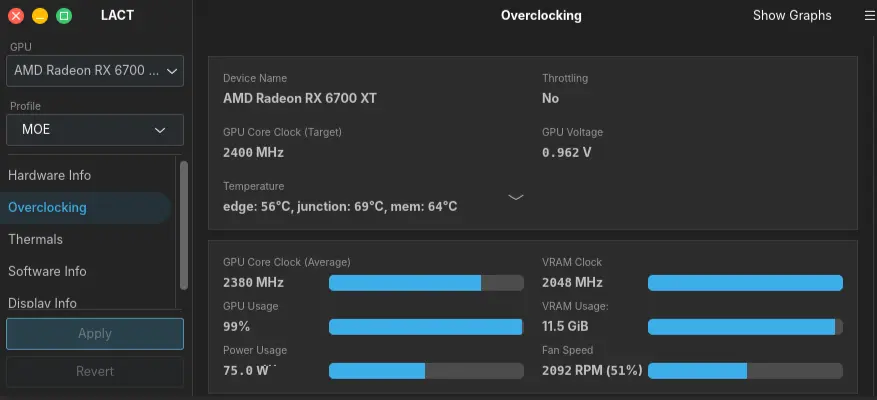

LACT tuning during ROCm benchmark — Manual Compute 182W minus 90mV VRAM 1900MHz — LACT — ROCm run (same tuning)

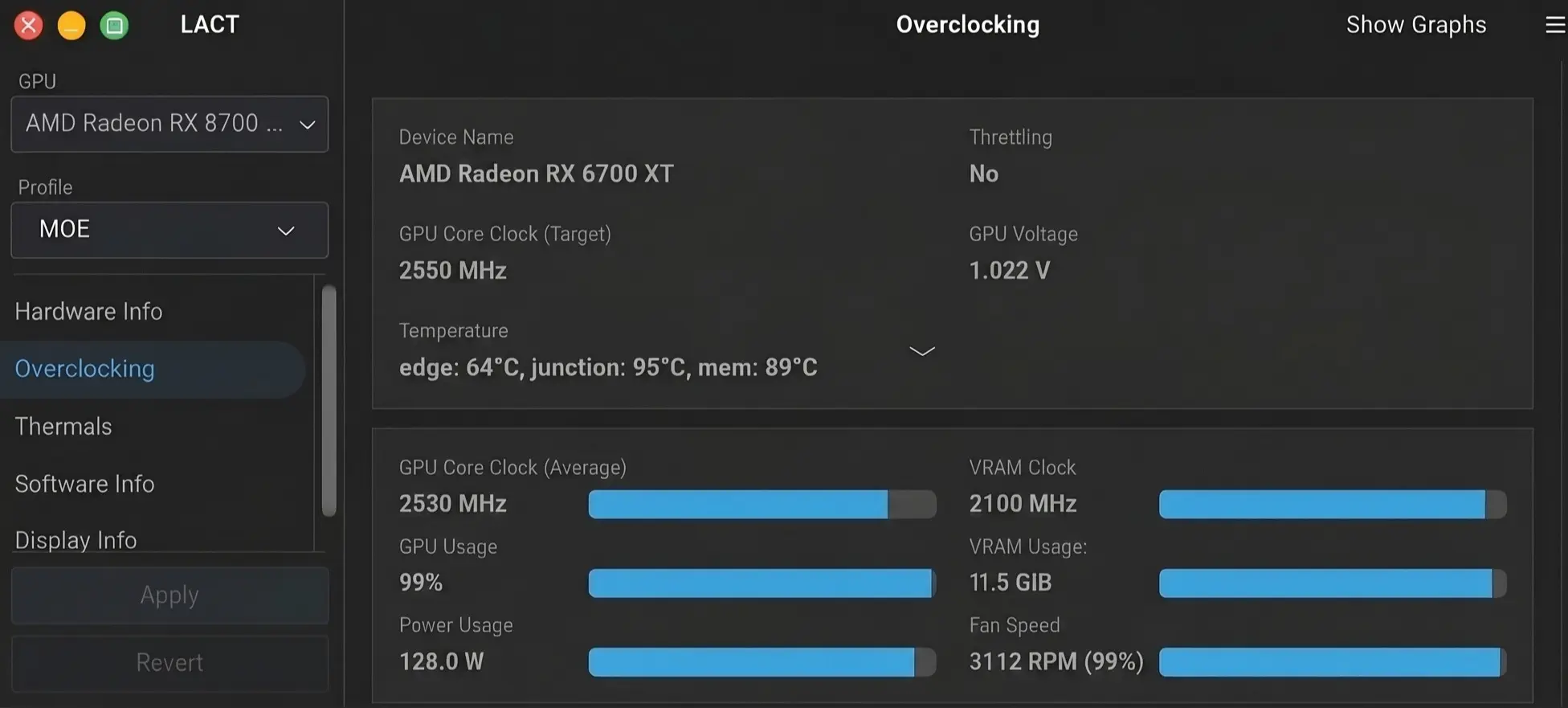

LACT — Vulkan run (same tuning)

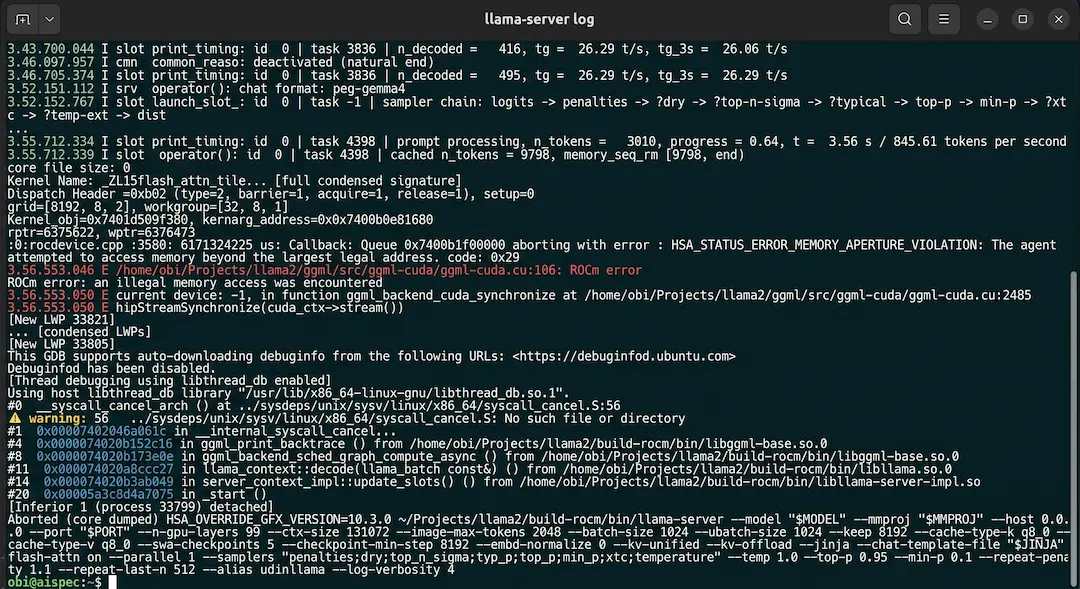

Core dump assert crash max_blocks_per_sm greater than 0 on gfx1031 ROCm — The bug that gates ROCm out of long-context

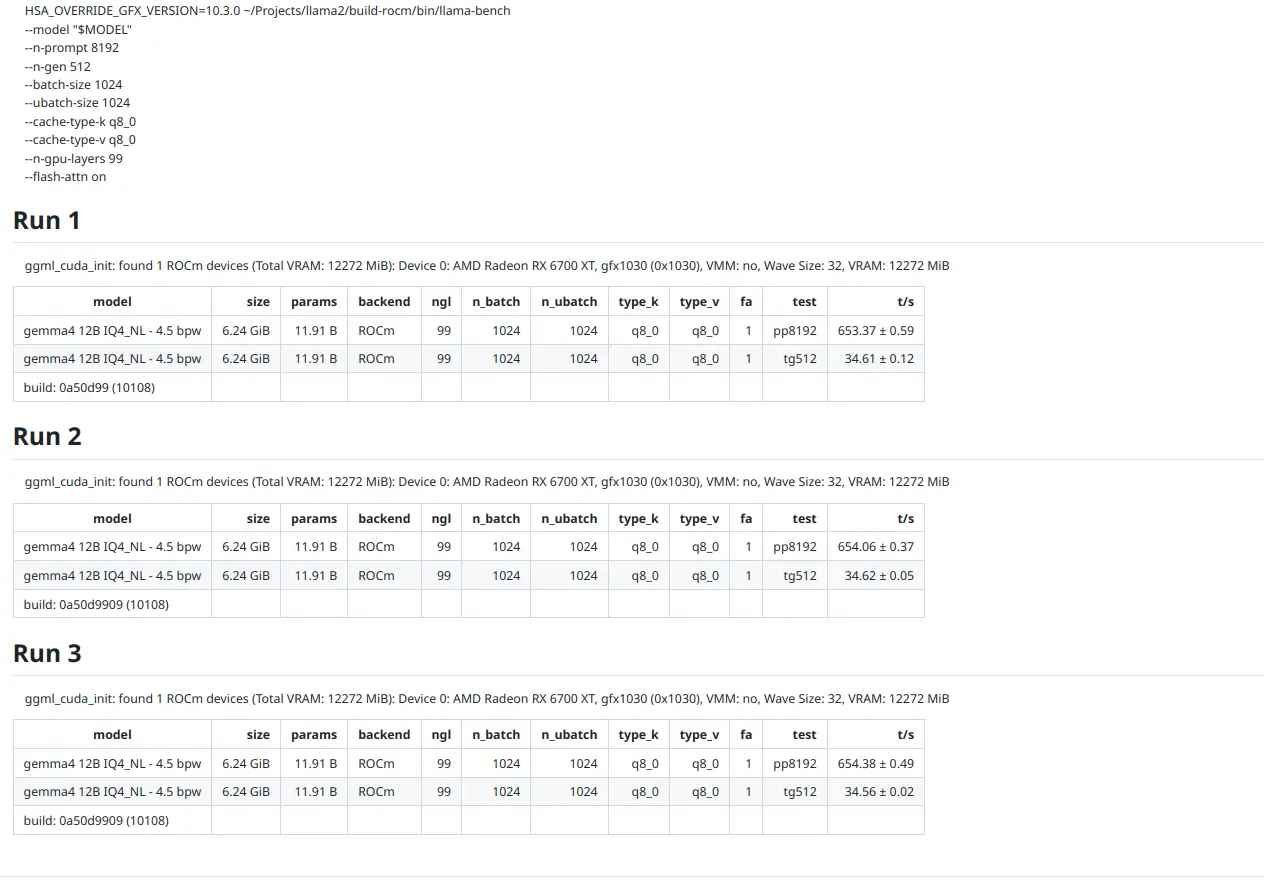

llama-bench ROCm 3 runs pp8192 653 t/s tg512 34.6 t/s gemma 12B — ROCm bench — 653 t/s prefill (3 runs)

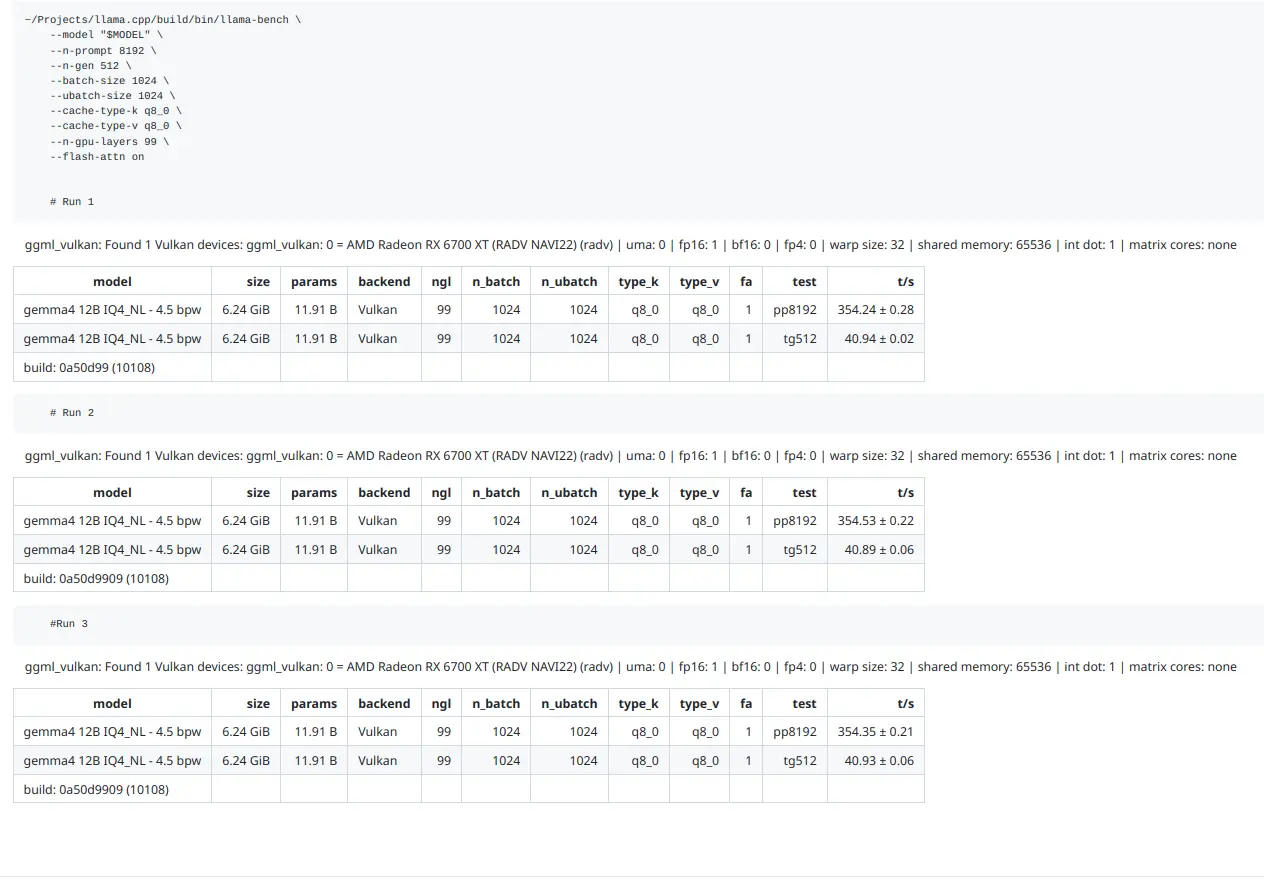

llama-bench Vulkan 3 runs pp8192 354 t/s tg512 40.9 t/s same model flags — Vulkan bench — 354 t/s prefill (3 runs)

Visualization

Prefill wins, decode loses — net win.

Same model gemma-4-12b-it-IQ4_NL (layers fully on GPU), same flags. Only backend changed. 3-run average from issue #26702.

Note: numbers here use a different model than EXP 009 (35B A3B split CPU/GPU) — same goal, different experiment, do not compare directly.

Prefill pp8192 +84.5%

tokens / second, higher is better

ROCm 653.37 / 654.06 / 654.38 · Vulkan 354.24 / 354.53 / 354.35

Decode tg512 -15.4%

tokens / second, higher is better — ROCm loses here

ROCm 34.61 / 34.62 / 34.56 · Vulkan 40.94 / 40.89 / 40.93 — TOP_K gap under investigation (EXP 009)

23% net wall-clock win — why prefill matters more.

Full cycle: 8192 prefill + 512 generate. Prefill dominates at this depth.

ROCm — 27.3s total12.5s + 14.8s

prefill 12.5s (653.9 t/s) + decode 14.8s (34.6 t/s)

Vulkan — 35.6s total23.1s + 12.5s

prefill 23.1s (354.4 t/s) + decode 12.5s (40.9 t/s)

Crossover ~1760 tokens — below that Vulkan is net-faster, above that ROCm wins. Effectively all long-context workloads (32K–120K+) favor ROCm once it runs.

For those of you unable to read this data from technical standpoint, here is the conclusion:

My graphics card (RX 6700 XT) is officially “unsupported” by the fast AI software (ROCm). The easy software (Vulkan) works instantly but is slow where it matters most.

I found two roadblocks: the software didn’t recognize my card so I had to disguise it as its close neighbor, and a safety check crashed the fast-memory mode I need for long documents.

I fixed both locally with two small workarounds — and measured carefully 3 times each: fast mode reads 653 pages per second vs 354 for easy mode on long documents.

Over a full job (read 8192 + write 512), fast mode finishes in 27 seconds vs 36 seconds — 23% faster — even though it writes slightly slower. For long documents, reading dominates the total time.

My fix is stable for daily use, but I reported it publicly upstream so everyone benefits. I linked the bug report so you can verify — no magic numbers. The remaining write-speed mystery is next in EXP 009.

Experiment Details

Problem

My RX 6700 XT is gfx1031 (Navi22) — no first-class ROCm target in llama.cpp. The choice is painful: Vulkan just works but is ~85% slower on prefill at 8K, while ROCm is faster but needs manual workarounds and crashes on flash-attention. For long-context research and agentic workloads that routinely run 32K–120K+ tokens, this decides whether 12GB VRAM is usable or constantly OOM.

This backend optimization was not optional — EXP 001 would not exist without it. EXP 001 is the result after successfully tuning the GPU backend. This page (EXP 008) is the first mandatory unlock via override workaround; EXP 009 refines it to native without override.

Specifications

1.
LACT sweet-spot for long-context: Manual level, Compute profile, power 182/223W, max clock 2350MHz (vs 2600 stock), voltage -90mV, VRAM 1900MHz — identical tuning for both backends, no backend-specific tuning.
2.
ROCm build from commit 0a50d99: -DGGML_HIP=ON -DAMDGPU_TARGETS=gfx1030 with clang / hipcc, runtime HSA_OVERRIDE_GFX_VERSION=10.3.0 to masquerade gfx1031 as gfx1030.
3.
Vulkan build: cmake -B build -DGGML_VULKAN=1 — no tweak, no drama, RADV NAVI22.
4.
Bench template (only backend changed): --n-prompt 8192 --n-gen 512 --batch-size 1024 --ubatch-size 1024 --cache-type-k q8_0 --cache-type-v q8_0 --n-gpu-layers 99 --flash-attn on on gemma-4-12b-it-IQ4_NL.gguf (6.24 GiB).
5.
Server template proving long-context usable: --ctx-size 131072 --spec-draft-model mtp-gemma --flash-attn on --kv-unified --kv-offload — full command in Configuration Template. Note: at this stage I had not yet understood kv-unified in detail — see EXP 009 for the refined --no-kv-unified iteration.
6.
Flash-attention is mandatory: KV quant, usable context size, and MTP speculative decoding all depend on it. Turning FA off is not a viable fallback.
7.
Measurement: 3 runs per backend, identical batch/cache, llama-bench excludes sampling time — so decode gap needs separate isolation.

Hypothesis

For gfx1031 long-context, ROCm with correct GFX handling and working flash-attention will beat Vulkan net wall-clock despite a decode deficit — because prefill dominates the cycle. The friction is build/runtime packaging, not hardware capability.

Experiment

I built both backends from the same commit, ran llama-bench 3× each with identical flags, and captured terminal tables. I attempted a native gfx1031 target first — confirmed it fails without override. I then hit the FA assert, patched it locally with a minimal guard, kept FA on, and re-ran. Finally I converted t/s to wall-clock math and computed the crossover point.

What Failed

1.
gfx1031 has no working native target. Building with -DAMDGPU_TARGETS=gfx1031 fails to run correctly — I must build for neighboring gfx1030 and override at runtime with HSA_OVERRIDE_GFX_VERSION=10.3.0. Ask: native Navi22 support without masquerade.
2.
Flash-attention assert crash. GGML_ASSERT(max_blocks_per_sm > 0) in ggml/src/ggml-cuda/fattn-common.cuh crashes on this backend/target combo. Workaround if <=0 then =1 avoids crash but correctness/occupancy is unknown. Ask: root-cause fix or reviewed guidance.

Iteration

From “Vulkan is enough” to “ROCm is worth the friction.” I kept Vulkan as baseline, isolated ROCm variables one by one (GFX override → FA patch → bench), and refused to disable FA because that would hide the exact workload where ROCm wins. I documented workarounds honestly with an unknown-correctness disclaimer instead of silently forking — so maintainers can fix root cause while users stay productive.

Evidence

3-run average per backend, same commit 0a50d99, same model and flags. Full tables in issue #26702 + screenshots above.

pp8192 ROCm

653.9 t/s

avg of 3

pp8192 Vulkan

354.4 t/s

avg of 3

Delta prefill

+84.5%

ROCm wins

tg512 ROCm

34.6 t/s

avg of 3

tg512 Vulkan

40.9 t/s

avg of 3

Delta decode

-15.4%

Vulkan wins

Total 8192+512

27.3s vs 35.6s

ROCm vs Vulkan

Net win

~23% Stable

workaround

Result

ROCm wins net wall-clock by ~23% at 8K (27.3s vs 35.6s) despite losing decode throughput. Crossover is ~1760 prompt tokens — ROCm is the better backend for effectively all long-context workloads on this hardware, once it can be built and run without manual patching. The workaround stack is STABLE locally for 131K server + MTP speculative decoding use.

What I Learned

Optimization lives under the model: GFX target handling + flash-attention occupancy matter more than prompt tricks for long-context. A one-line assert can gate an entire hardware family out of its best workload. An honest workaround with an unknown-correctness disclaimer + an upstream report beats a silent fork — it keeps me productive today while letting maintainers fix the root cause for everyone.

Practical Implication

For RDNA2 owners (RX 6600/6700): don’t settle for Vulkan if you do long-context — use the override + patch documented below, keep LACT conservative, keep KV q8_0 + FA on. For llama.cpp: two small fixes (native gfx1031 + FA occupancy) would unlock this series without user patching. Until then this page + #26702 is the reproducible reference. Decode TOP_K gap is next — see EXP 009 teaser.

Configuration Template

ROCm workaround — build + FA patch + bench (from #26702)

# Build ROCm as gfx1030 (gfx1031 native fails without override)
cmake -S ~/Projects/llama2 -B ~/Projects/llama2/build-rocm \
  -DCMAKE_BUILD_TYPE=Release \
  -DCMAKE_C_COMPILER=clang -DCMAKE_CXX_COMPILER=hipcc \
  -DGGML_HIP=ON -DAMDGPU_TARGETS=gfx1030 -DCMAKE_HIP_ARCHITECTURES=gfx1030
cmake --build ~/Projects/llama2/build-rocm -j"$(nproc)"

# FA assert workaround (correctness UNKNOWN — see #26702)
sed -i 's/GGML_ASSERT(max_blocks_per_sm > 0);/if (max_blocks_per_sm <= 0) { max_blocks_per_sm = 1; }/g' \
  ~/Projects/llama2/ggml/src/ggml-cuda/fattn-common.cuh

# Bench (only backend changed vs Vulkan)
HSA_OVERRIDE_GFX_VERSION=10.3.0 ~/Projects/llama2/build-rocm/bin/llama-bench \
  --model "$MODEL" --n-prompt 8192 --n-gen 512 \
  --batch-size 1024 --ubatch-size 1024 \
  --cache-type-k q8_0 --cache-type-v q8_0 \
  --n-gpu-layers 99 --flash-attn on

Vulkan baseline — no bug, no drama

cmake -B build -DGGML_VULKAN=1
cmake --build build --config Release
~/Projects/llama.cpp/build/bin/llama-bench \
  --model "$MODEL" --n-prompt 8192 --n-gen 512 \
  --batch-size 1024 --ubatch-size 1024 \
  --cache-type-k q8_0 --cache-type-v q8_0 \
  --n-gpu-layers 99 --flash-attn on

Do not copy the sed patch blindly. It avoids the crash and benches stably, but only a maintainer can confirm it is safe for gfx1031. Track issue #26702 for reviewed guidance.

1.
I kept LACT identical for both backends so the win cannot be dismissed as tuning difference — Manual Compute, 182W, -90mV.
2.
I kept FA on because KV q8_0 + long context + MTP all require it — disabling FA would hide ROCm’s advantage.
3.
I used override at runtime, not build time — HSA_OVERRIDE_GFX_VERSION=10.3.0 lets gfx1031 masquerade as gfx1030 without forking the build.
4.
I reported upstream with full tables — 3 runs each, same commit, so anyone can reproduce instead of trusting my summary.

FAQ

Frequently Asked Questions

Why not just use Vulkan? It works out of the box. ▼

Vulkan needs no patch, but at 8192 context it does 354 t/s prefill vs ROCm 653 t/s. That is 23.1s vs 12.5s prefill — net 35.6s vs 27.3s full cycle. Below ~1760 tokens Vulkan is net-faster, above that ROCm wins. For long-context research and agentic work, ROCm is clearly better once running.

Is forcing max_blocks_per_sm = 1 safe? ▼

Unknown — that is why it is reported as bug #26702, not a fix. It avoids the crash and benches stably across 3 runs, but only a maintainer can confirm correctness and occupancy for gfx1031. Do not treat the one-liner as an upstream fix.

Does this explain the decode being slower on ROCm? ▼

No. llama-bench excludes sampling time, so the TOP_K unsupported on ROCm log seen in llama-server is not confirmed as the cause of the tg512 gap here. That TOP_K CPU fallback was a side effect of the gfx override — it is indirectly fixed in EXP 009 by running natively without override.

Disclaimer

Workaround, Not Upstream Fix

This experiment is STABLE with my local workarounds (GFX override + FA assert guard) on the hardware and commit listed above. It is not an upstream fix. Native gfx1031 support and a reviewed flash-attention fix are pending with maintainers. Numbers are from 3-run llama-bench on gemma-4-12b-it-IQ4_NL — reproducible with the commands above, not a guarantee for every model or ROCm version. I disclosed the max_blocks_per_sm = 1 guard as correctness-unknown on purpose.

Upstream report: ggml-org/llama.cpp#26702 — Misc. bug: ROCm gfx1031 build report (why ROCM is better than vulkan)
