Experiment 009

Stable Continuation of EXP 008 →

From Override to Native: Robust ROCm gfx1031 Without HSA_OVERRIDE.

Q: Is head_dim 512 a universal fix I can copy?

No. It is conditional on amd_mfma_available and the tile shared-memory limit on this setup and commit fc3f10b38 with HIP 7.14.60850. Validate failure mode first. Method generalizes, number doesn't.

Q: Why did SGLang and vLLM start working too?

Unknown — author flags this honestly. Likely parallel ROCm-level changes resolved alongside, untracked. If you understand the mechanics, author invites explanation.

Can RX 6700 XT (gfx1031) run ROCm natively — no HSA_OVERRIDE, no spoofing — with flash-attention stable and prefill sustained above 500 tok/s at 20K+ cached context on a 35B A3B CPU/GPU split?

Issue #26702 Reddit proof Read EXP 008 first

Phase 1 (EXP 008): override workaround · Phase 2 (this page): native robust fix · 581 → 502 tok/s sustained

System Requirements

CPU

Intel Core i5-11400F

RAM

16GB DDR4 3200MT/s

GPU

RX 6700 XT 12GB gfx1031 Sapphire PULSE

Ubuntu Desktop 26.04 LTS

ROCm

TheRock HIP 7.14.60850 clang 23.0.0git

llama.cpp

10307 fc3f10b38 GNU 15.2.0

Model

Ornith-1.0-35B-UD-IQ4_NL n-cpu-moe 22

Engines

llama.cpp Ollama Unsloth LM Studio SGLang vLLM

Status

STABLE native, no override

rocminfo | grep gfx → gfx1031 (not spoofed). lspci Navi 22 rev c1 Sapphire PULSE. Exact HIP + commit matter — see Caveats. Previous phase: EXP 008 + #26702.

Screenshots

Native evidence — versions, sustained prefill, btop + lact + logs in one frame. Full write-up in Reddit post.

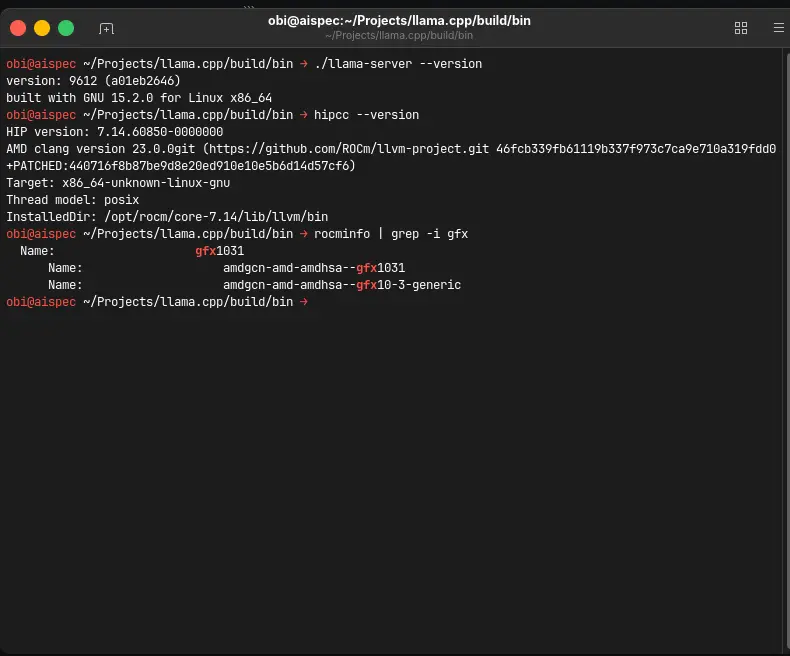

Terminal versions llama-server hipcc rocminfo proving native gfx1031 — Versions — llama-server hipcc rocminfo native

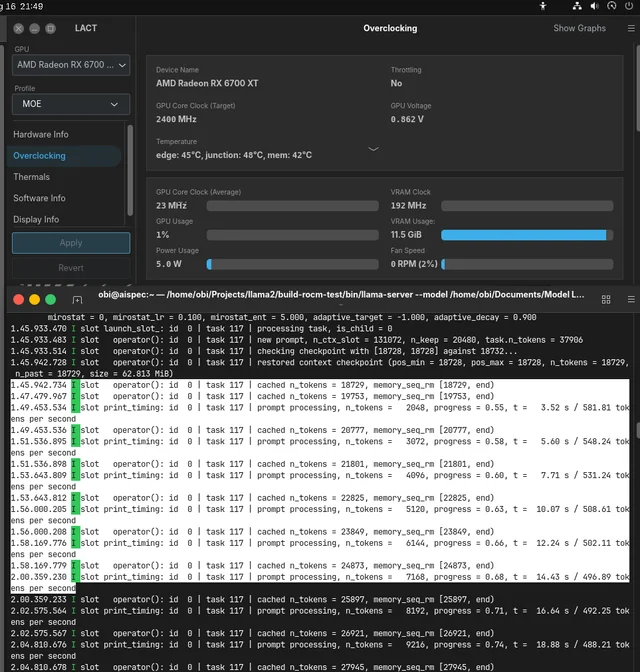

Prefill reaching 580 tokens per second sustained — Prefill 580 tok/s — sustained, not cold-start

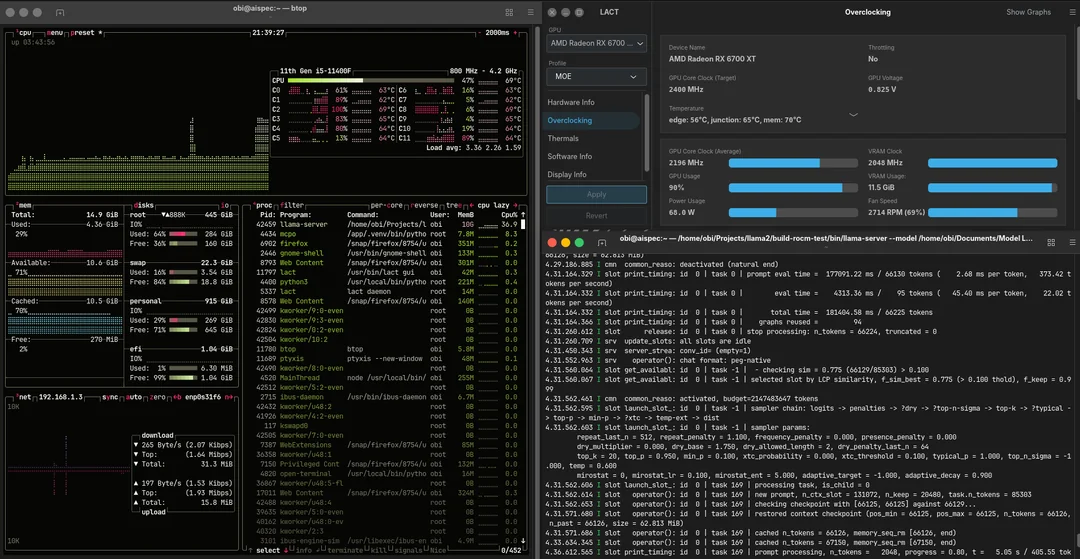

Prefill performance btop lact and llama log in one frame — Prefill perf — btop + lact + log

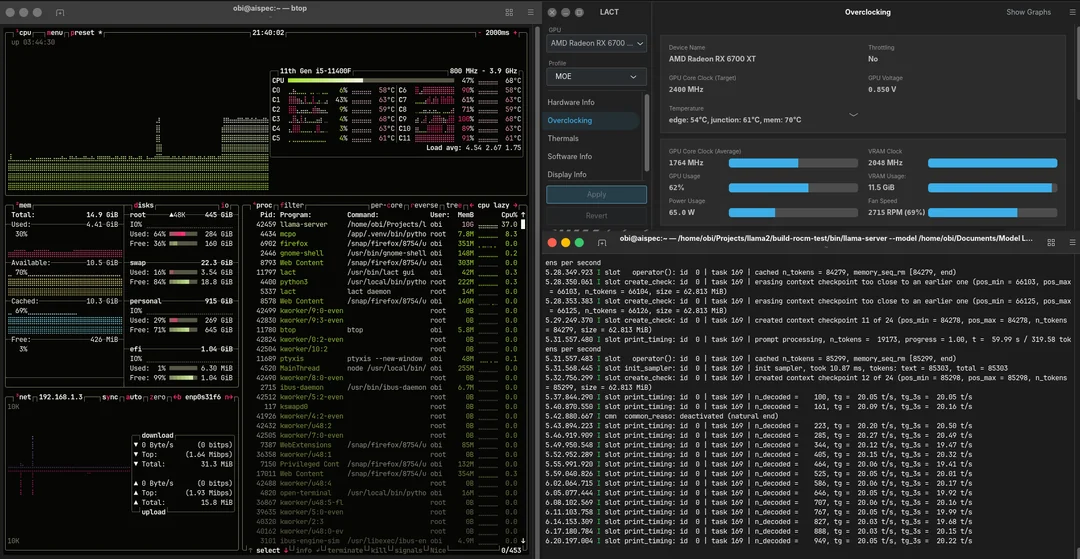

Decode performance btop lact and llama log in one frame — Decode perf — btop + lact + log

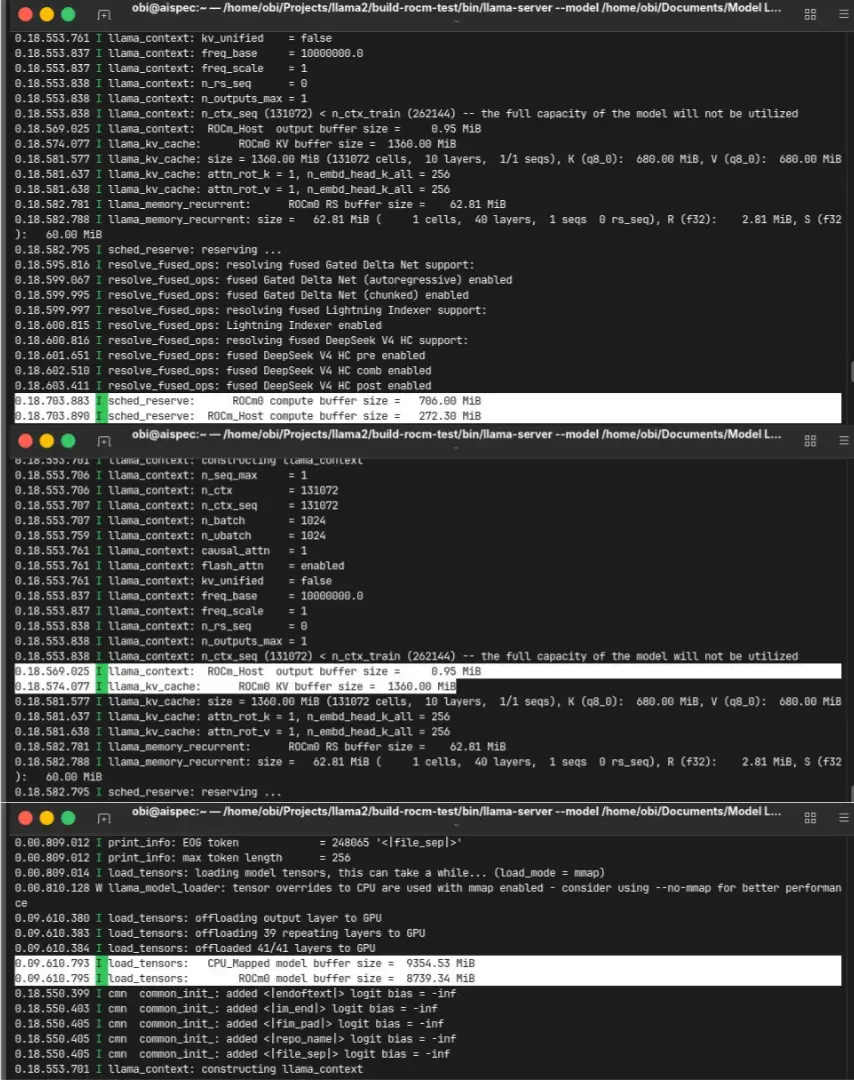

Evidence ROCm native llama server log long context stable — Native evidence — server log long context

Visualization

580 to 502 tok/s sustained — not a cold-start number.

Real session on Ornith-1.0-35B split CPU/GPU, 18–23K already cached, prompt chunks 2048→6144. This is TTFT that matters for 70K+.

Note: different model than EXP 008 (gemma4 12B fully on GPU) — same goal, different experiment, do not compare 581 vs 653 directly.

Prefill sustained 500+ floor

3.52s/581.81 → 5.60s/548.24 → 7.71s/531.24 → 10.07s/508.61 → 12.24s/502.11 · Vulkan same regime 70–100

Clock +45% vs bandwidth +7% — prefill is compute, decode is bandwidth.

6700XT 2581MHz vs 3060 1777MHz+45% clock

384 vs 360 GB/s+7% bandwidth

3060 split peaks ~300 tok/s prefill. 6700XT should clear it widely — Vulkan didn’t. That gap signaled software bottleneck, not hardware ceiling. Decode 22–23 tok/s flat past 40K — consistent, not the bottleneck chased.

For those of you unable to read this data from technical standpoint, here is the conclusion:

Running a big 35B model split across 12GB GPU + CPU means waiting for the prompt to process at 70K+ context is what hurts — not writing answers.

Easy mode was okay at 16–32K but painful beyond. Pretending my card is a different model caused crashes and silent slowdowns.

I insisted on native recognition, watched a stable mode to find the real kernel, and forced the matrix-core path for one specific size — one line of code.

Result: ~580 pages/sec peak staying above 500 with 20K already loaded, 131K context stable, working across 6 apps — not just one.

I’m self-taught and found this by observation — if you know why it works deeper, I’d love to learn. Full repro versions and flags are inside; don’t copy the number blindly.

Experiment Details

Problem

gfx1031 sits awkwardly: RDNA2 but not gfx1030 (RX 6800/6900) where official ROCm support and community docs concentrate. Applying gfx1030 guides as-is to a 6700XT either silently falls back or crashes outright.

I tried HSA_OVERRIDE_GFX_VERSION=10.3.0: flash-attention wouldn’t enable, top_k silently fell back to CPU tanking decode, and random mid-inference core dumps appeared. I required native gfx1031, no override — costly trial and error, but necessary. This backend optimization is why EXP 001 exists at all: EXP 008 was the first unlock via override, this page (EXP 009) is the refinement to native.

Specifications

1.
TheRock HIP 7.14.60850 clang 23.0.0git — don’t substitute arbitrary TheRock builds, variance is large.
2.
llama.cpp 10307 fc3f10b38 GNU 15.2.0 — commit drift is real, fattn.cu logic shifts per commit.
3.
Native proof: rocminfo → gfx1031 + lspci Navi 22 rev c1 Sapphire PULSE RX 6700 XT GAMING OC.
4.
Model split: Ornith-1.0-35B-UD-IQ4_NL --n-cpu-moe 22 --n-gpu-layers 99 --ctx-size 131072 --cache-type-k q8_0 --cache-type-v q8_0 — 22 from VRAM headroom, not arbitrary.
5.
Threads: --threads 4 bandwidth-bound on DDR4-3200; 3 slightly faster on paper but 95C spikes vs 83C controlled at 4.
6.
Batch 1024: 1536/2048 gave no meaningful prefill gain, added ~10C — not worth it.
7.
Multi-engine: llama.cpp (build-rocm-test) + Ollama (moved from Vulkan) + Unsloth + LM Studio + SGLang + vLLM — all native after fix.

Hypothesis

6700XT boost +45% over 3060 12GB should dominate prefill (compute-bound) while barely moving decode (bandwidth-bound, only +7%). 3060 split references peak ~300 tok/s prefill — 6700XT clearing it narrowly or not at all on Vulkan signals a software bottleneck, fixable at kernel dispatch.

Experiment

Builds kept failing: documented RDNA2 head_dim config failed, guesses 1024/2048/4096 all failed. I stopped guessing, ran the model through stable Vulkan as baseline, watched kernel activity in btop, and correlated it to dispatch logic in fattn.cu. That’s where 512 came from — observation, not documentation.

What Failed

1.
Documented head_dim for RDNA2 — failed to build/run natively on this HIP + commit combo.
2.
Random power-of-2 guesses (1024/2048/4096) — failed on all, blind guessing doesn’t work.
3.
Override path — “worked” but FA off, top_k CPU fallback, random dumps. Functional failure for 35B split long-context.

Iteration

From spoofing the runtime to fixing dispatch: force MMA matrix-core path at 512 where tile hits shared-memory limit. Flash-attn stable → KV q8_0 viable → 131K usable. One fix unblocked the whole chain. I’m not a developer (creative director, self-taught) — this reads as empirical diagnosis; I invite kernel experts to fill in the why.

Evidence

Sustained-session logs (not cold-start) + version pins. Verify via screenshots + Reddit post + rocminfo.

Prefill peak

581.8 t/s

20K+ cached

Prefill floor

502.1 t/s

still >500

Decode

22–23 t/s

flat 40K+

Context

131072

stable q8_0

Threads

4 @83C

vs 3 @95C spikes

Batch

1024

2048 +10C no gain

Engines

6 native

incl. SGLang vLLM

Override

None

gfx1031 native

Result

Native ROCm/HIPBLAS/ROCBLAS with no override, flash-attention stable, KV q8_0, 131K confirmed stable, Ollama moved from Vulkan to native ROCm too. Prefill is what was fixed; decode stayed consistent as expected.

What I Learned

What generalizes isn’t 512 — it’s the method: stable-backend baseline + kernel watch + dispatch correlation finds your fix without deep theory. I genuinely don’t know why SGLang/vLLM (no shared ggml code) also fixed — likely parallel ROCm changes untracked. If you understand shared-memory mechanics here, I’d appreciate the explanation.

Practical Implication

For under-documented AMD: don’t hardcode 512 blindly — check failure mode, HIP build, commit, board and RAM first. For repro: pin TheRock 7.14.60850 + fc3f10b38 + Sapphire PULSE + i5-11400F/DDR4 context. Chain: EXP 009 (native stack) → EXP 001 (35B usable) → EXP 008 (why ROCm wins).

Configuration Template

The fix — ggml/src/ggml-cuda/fattn.cu

// Force MMA kernel for head_dim 512 on AMD to avoid tile kernel shared memory limit
if (amd_mfma_available(cc) && Q->ne[0] == 512) {
  return BEST_FATTN_KERNEL_MMA_F16;
}
return BEST_FATTN_KERNEL_TILE;

Full llama-server — Ornith-35B split (copy-paste, then tune VRAM)

BASE="$HOME/Documents/Model LLM/Ornith-1.0-35B"
MODEL="$BASE/Ornith-1.0-35B-UD-IQ4_NL.gguf"
PORT=8082
~/Projects/llama2/build-rocm-test/bin/llama-server \
 --model "$MODEL" --host 0.0.0.0 --port "$PORT" \
 --n-gpu-layers 99 --threads 4 --threads-batch 4 --n-cpu-moe 22 \
 --ctx-size 131072 --batch-size 1024 --ubatch-size 1024 --keep 20480 \
 --cache-type-k q8_0 --cache-type-v q8_0 --swa-checkpoints 24 \
 --checkpoint-min-step 2048 --embd-normalize 0 --no-kv-unified --kv-offload \
 --jinja --reasoning-preserve --flash-attn on --parallel 1 \
 --cache-ram 8192 --cache-idle-slots \
 --temp 0.6 --top-k 20 --top-p 0.95 --min-p 0.1 \
 --repeat-penalty 1.1 --repeat-last-n 512 --alias udinllama --log-verbosity 4

Do not hardcode 512 or copy --n-cpu-moe 22 blindly. 22 came from my 12GB headroom; threads 4 is bandwidth + thermal optimum on my DDR4 rig, not a universal best.

1.
I validated versions first — TheRock 7.14.60850 + fc3f10b38 — because drift changes fattn.cu behavior.
2.
I proved native with rocminfo gfx1031 + board ID, not just “it runs.”
3.
I measured sustained (20K+ cached), not cold-start peaks.
4.
I kept unknowns explicit — SGLang/vLLM side-effect unexplained, 512 observational.

FAQ

Frequently Asked Questions

Why require native instead of HSA_OVERRIDE?▼

Override gave FA-off, top_k CPU fallback tanking decode, and random mid-inference core dumps. For 35B split at 70K+ that is unusable. Native was slower to achieve but stable — rocminfo proves no spoofing.

Is head_dim 512 a universal fix I can copy?▼

No. Conditional on amd_mfma_available and this HIP + commit. Validate failure mode first. Method generalizes, number doesn’t.

Why did SGLang and vLLM start working too?▼

Unknown — flagged honestly. Likely parallel ROCm-level changes untracked. If you understand the mechanics, author invites explanation.

Disclaimer

Version-pinned, not universal

Validated on Ubuntu Desktop 26.04 LTS + TheRock HIP 7.14.60850 + commit fc3f10b38 + Sapphire PULSE 6700 XT + Intel Core i5-11400F/16GB DDR4. Commit drift is real; other ROCm sources/distros may differ; 512 is conditional. Numbers are sustained-session logs, not cold-start peaks. I’m self-taught — method is empirical; corrections on the why are welcome.

Previous phase: EXP 008 · Upstream: ggml-org/llama.cpp#26702 · Write-up: Reddit r/LocalLLM native gfx1031 post
